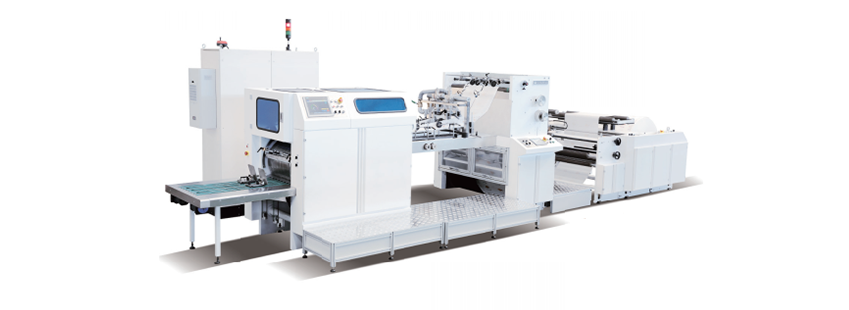

ZD-J20S/D Full-Servo High-Speed Flat Bottom Paper Bag Machine

Machine Description Machine Highlights Technical Parameters

Machine Description

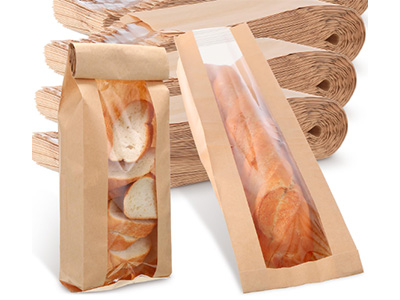

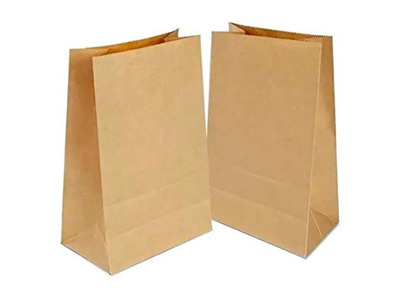

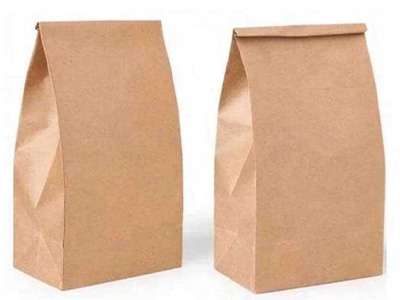

As the first genuine Full-Servo High-Speed Flat Bottom Paper Bag Machine in China, this machine can make use of 9 high-speed and high-precision servo motors, to complete processes including paper unwinding, hot-melt glue spraying, film pasting.perforation, side gluing, tube forming, tube breaking, bottom gluing, bottom forming and bags collection at high speed. It produces flat & satchel paper bags not only for food industry, but also for medicine industry and other fast-consuming industries, Thanks to the special dual-line production design, this machine is an ideal alternative to imported euipment, for customers to find the perfect balance between production efficiency and bag size according to their various requirements.

Machine Highlights

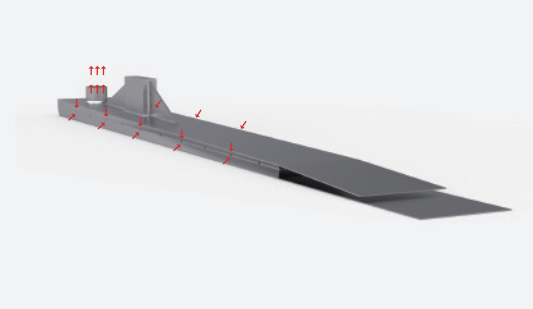

The first vacuum template in China.

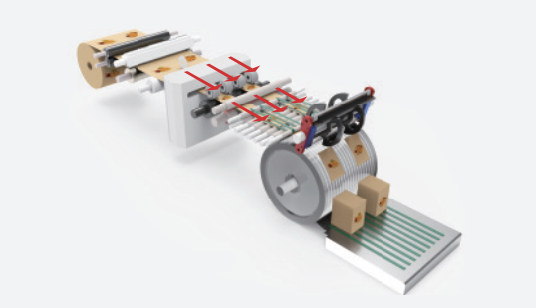

Nine Siemens servos collaborate to complete two-channel production

Technical Parameters

TECHNICAL DATA	ZD-J20S （Single Line)	ZD-J20D (Dual Lines)
Max. Paper Roll Width	1100mm	1100mm
Max. Paper Roll Diameter	Ф1300mm	Ф1300mm
Material Core Diameter	Ф76mm (3'')	Ф76mm (3”)
Material Thickness	Paper: 30-90g/㎡	Paper: 30-90g/㎡
	Cellophane: 40~90g/㎡	Cellophane: 40~90g/㎡
Tube Length	105~400mm	105~400mm
Bag Body Width	W/0 Gusset: 60-500mm	W/0 Gusset: 60~230mm
	With Gusset: 60~500mm	With Gusset: 60~190mm
Max. Gusset Depth	65mm	65mm
Bottom Folding Length	15~25mm	15~25mm
Max. Speed	1000bags/min	1800bags/min
Total Power	75kw	75kw
Total Weight	Approx. 5000kg	Approx.5000kg
Overall Dimension	L9000mmxW2500mmxH2100mm	L9000mmxW2500mmxH2100mm
