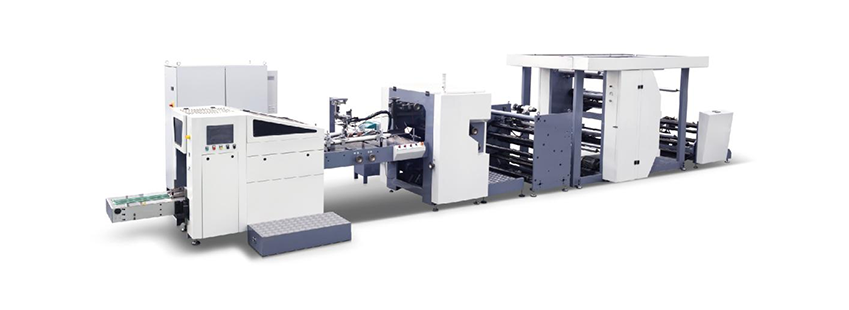

ZD-J High speed V-bttom Paper Bag Machine

Machine Description Machine Highlights Technical Parameters

Machine Description

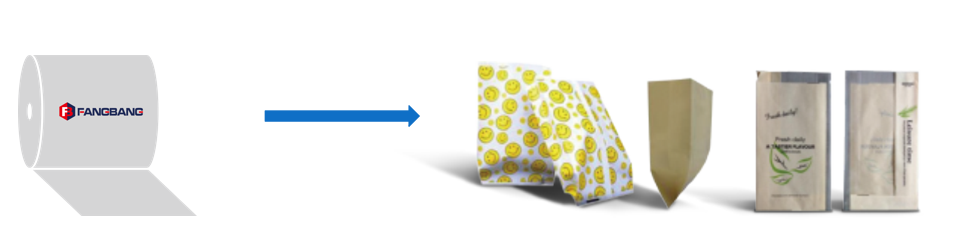

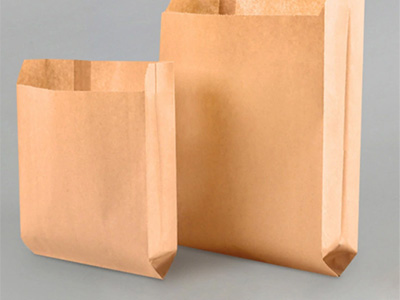

This machine is designed to manufacture sharp bottom paper bag from paper roll, and it is suitable for kraft paper, ribbed kraft paper, grease-proof paper, coated paper, medico paper & etc.By implementing steps including roll feeding, side gluing, perforating, tube forming, tube cutting off.bottom folding and gluing, finished bag collecting within a fully automatic process,can effectively save labor costs. lt has advantage of easy operation, high efficiency,more steady, it is an ideal machine for make different kind of paper bag, snack paper bag,food paper bag, bread paper bag, dry fruit paper bag and eco-friendly paper bag.

Machine Highlights

1. Machine use French Schneider touch screen human-computer interface,operation and control easily.

2. Adopt UK TRlO PC micro-computer control system,integrated with optical fiber, ensure high speed running steadily.

3. Adopt Japanese Yaskawa Servo Control System andGerman SlCK photocell for rectify,tracking printed bag accurately.

4. Optional window making device including film unwinder and hot-melt glue system,can apply transparent window on one face of paper bag to display more clearly the goods inside.

5. Optional printing unit without unwinding/rewinding, saves operation time and physical space greatly, bringing more automation into traditional paper bag production.

Technical Parameters

TECHNICAL DATA	ZD-J10	ZD-J13
Paper Roll Width	170~780mm	170~900mm
Max. Paper Roll Diameter	Ф1000mm	Ф1000mm
Paper Core Diameter	Ф76mm(3")	Ф76mm(3")
Paper Thickness	35-80g/㎡	35-80g/㎡
Bag Body Length	100~450mm	120~710mm
Bag Body Width	80~250mm	80~320mm
Gusset Size	0~130mm	0~130mm
Film Width	50~200mm	50~200mm
Film Thickness	12~50um	12~50um
Film Core Diameter	Ф76mm(3")	Ф76mm(3")
Max. Speed	320bags/min	500bags/min
Total Power	21kw	21kw
Total Weight	Approx.4500kg	Approx.6500kg
Overall Dimension	7000X1800X1900mm	7600X2200X2100mm
